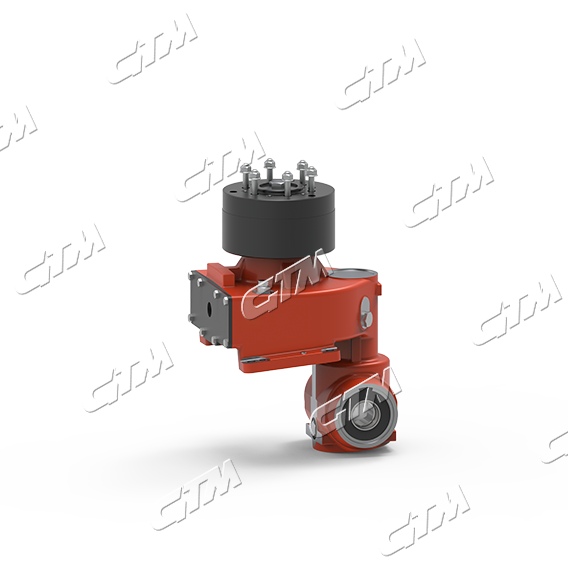

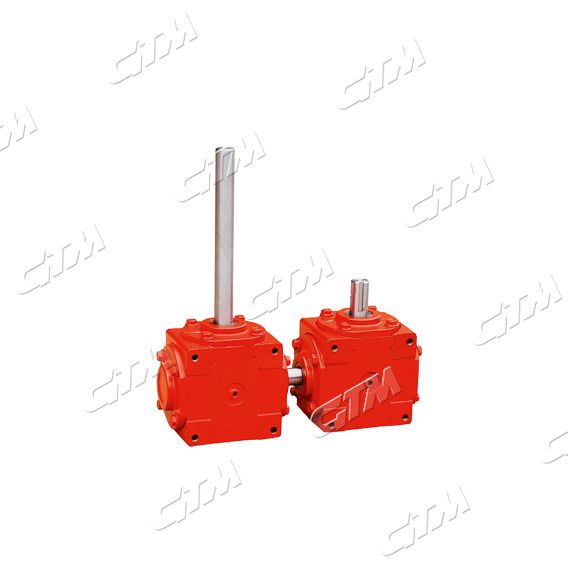

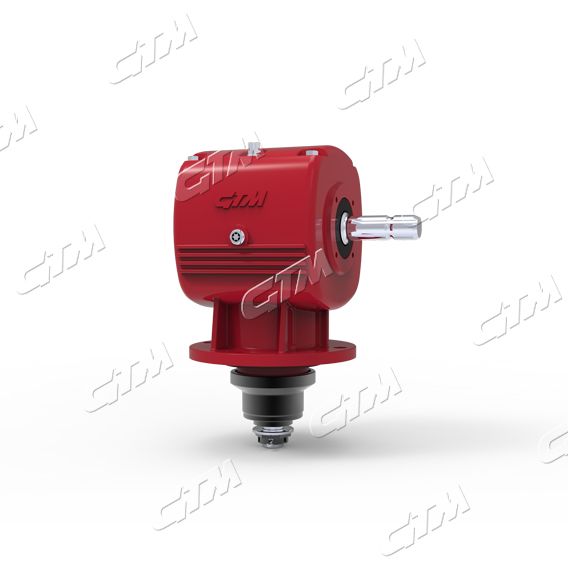

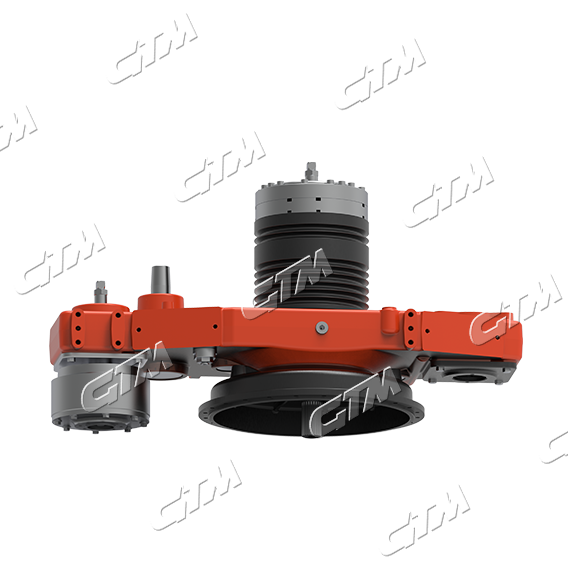

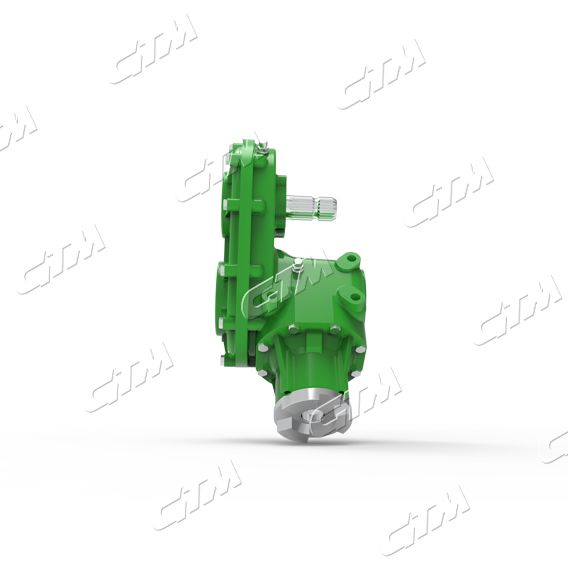

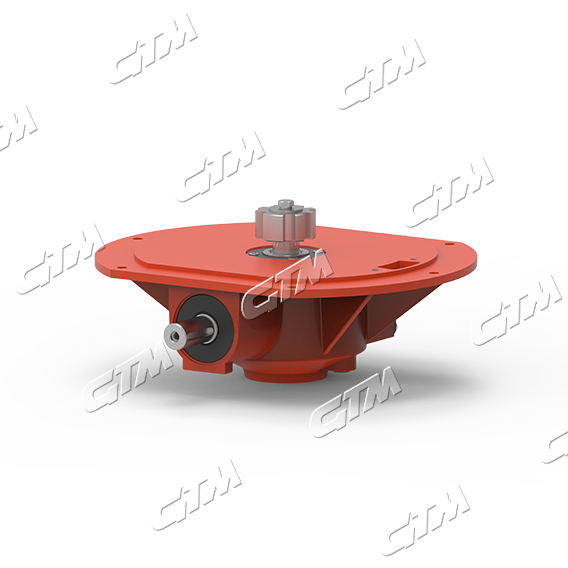

recommend products
GTM specializes in designing and manufacturing high-quality post hole digger gearboxes for agricultural and landscaping machinery. Built to deliver reliable torque and smooth operation, our gearboxes are ideal for augers, tractor-mounted post hole diggers, and other earth-drilling equipment used in farming, fencing, and construction.
Founded in 1997, Zhejiang GTM Hi-Tech Intelligent Equipment Co., Ltd. is a listed national high-tech enterprise focusing on the R&D and production of agricultural transmission systems. With over 350,000 sets produced annually, GTM has extensive global export experience, serving customers in North America, Europe, Asia, Australia, South America, and the Middle East.
Our facilities are certified under ISO9001, IATF16949, environmental management, and occupational health standards, ensuring every gearbox meets strict international standards for durability, precision, and performance.
Learn more about our full Rotary Tiller Gearbox Series and specialized Rotary Cutter Gearbox Series.
| Parameter | Specification |
|---|---|
| Product Type | Post-hole Digger Gearbox |
| Application | Tractor PTO driven auger / post hole digger |
| Power Range | 20 HP – 75 HP |
| PTO Input Speed | 540 RPM / 1000 RPM (optional) |
| Gear Ratio | 2.92:1 / 3.18:1 / 3.67:1 (custom ratios available) |
| Transmission Type | Bevel gear transmission |
| Input Shaft | 1-3/8" Z6 PTO spline shaft |
| Output Shaft Type | 2" round shaft / 2" hex shaft / 2-1/2" round shaft |
| Housing Material | High-strength cast iron |
| Gear Material | Heat-treated alloy steel |
| Bearing Type | Heavy-duty tapered roller bearings |
| Lubrication | Oil bath lubrication |
| Oil Seal | High-temperature NBR oil seals |
| Mounting Type | Flange mounted / Bolt-on |
| Rotation Direction | Clockwise / Counter-clockwise |
| Operating Temperature | -20°C to 120°C |
| Service Life | 8,000 – 12,000 working hours |
| Surface Treatment | Anti-rust coating / Powder coating |
Key Design Features
High-torque bevel gears for efficient drilling power
Precision machining ensures low noise and smooth gear operation
Reinforced housing resists impact and vibration during drilling
Premium oil seals prevent oil leakage under heavy load
Post-hole digger gearboxes are widely used in tractor PTO driven auger systems for drilling holes in soil.
Fence post installation
Tree planting and orchard setup
Agricultural irrigation systems
Vineyard and orchard construction
Farm infrastructure projects
Landscaping and construction drilling
3-Point Hitch Post Hole Diggers
Tractor PTO Augers
Hydraulic Auger Attachments
Agricultural Drilling Machines
Construction Auger Equipment
| Tractor Size | Recommended Gearbox |
|---|---|
| 20–30 HP | Light-duty auger gearbox |
| 30–50 HP | Standard post hole digger gearbox |
| 50–75 HP | Heavy-duty auger gearbox |
With extensive export experience in agricultural machinery components, we frequently receive customization requests from overseas equipment manufacturers, distributors, and farm machinery brands.
Below are some of the most common requirements from our international customers.
Many overseas clients require gearboxes that match their local tractor standards.
Common customization options include:
1-3/8" Z6 PTO spline shaft (standard North American tractors)
1-3/8" Z21 spline shaft
Custom PTO shaft length or diameter
These options ensure perfect compatibility with tractor-driven post hole diggers and auger systems.
Different auger drills require different output shaft structures.
Typical requests include:
2" hex output shaft for heavy-duty augers
2" round shaft with keyway
2-1/2" round shaft
Custom shaft length and mounting configuration
This ensures the gearbox fits various earth augers used in farming, fencing, and construction drilling.
International buyers often request specific gear ratios to match drilling speed and torque requirements.
Typical ratios include:
2.92 : 1
3.18 : 1
3.67 : 1
Custom ratios help optimize drilling performance in different soil conditions, such as sandy soil, clay, or rocky terrain.
Many agricultural equipment brands request custom paint colors to match their machines.
Common requirements:
Custom RAL color codes
Brand-specific equipment colors (red, green, yellow, orange, etc.)
Anti-rust coating for outdoor environments
This allows the gearbox to integrate seamlessly with the OEM machinery design.
For heavy-duty applications, customers often request ductile iron (nodular cast iron) components instead of standard cast iron.
Typical parts upgraded to ductile iron include:
Gearbox housing
Mounting flanges
Shaft supports
This improves impact resistance, load capacity, and overall service life in demanding agricultural environments.
OEM customers often require gearboxes that match their existing equipment structure.
Common requests include:
Custom flange bolt pattern
Modified mounting height
Custom input/output shaft alignment
This ensures easy installation on tractor-mounted post hole diggers or hydraulic auger systems.
Some overseas distributors request gearboxes designed for longer operating hours and reduced maintenance.
Typical upgrades include:
Heavy-duty bearings
Reinforced gear teeth
High-performance oil seals
Improved lubrication systems
These improvements help the gearbox achieve 10,000+ hours of service life under normal operating conditions.
High Torque & Load Capacity – Stable power transfer for heavy-duty soil drilling and auger operations.
Precision Gears & Heat-Treated Components – Long service life and smooth rotation.
Customizable Input/Output Shafts – Multiple ratios and mounting options to fit various tractor models.
Sealed Housing & Superior Lubrication – Protects gears from dust, moisture, and debris.
Wide Compatibility – Suitable for post hole diggers, augers, fencing equipment, and tractor attachments.
Explore more specifications in our Rotary Tiller Gearbox Collection.
Our post hole digger gearboxes are widely used in:
Agricultural fieldwork – Fence post installation, tree planting, irrigation systems.
Construction sites – Soil sampling, foundation drilling, and piling.
Landscaping projects – Installing garden posts, decks, and outdoor structures.
Each gearbox is rigorously tested for torque output and endurance before shipment, ensuring optimal field performance under various soil conditions.
GTM has over 20 years of international trade experience in agricultural machinery components. Our gearboxes are exported to 40+ countries, including:
North America – USA, Canada: Supporting large-scale farm equipment manufacturers and distributors.
Europe – Germany, France, Italy: OEM gearbox solutions for precision agricultural machinery.
Asia – Japan, South Korea, India: Durable gearboxes for tractor-mounted augers and balers.
Australia & Oceania – Farm machinery dealers and landscape equipment suppliers.
South America & Middle East – Large projects for fencing, irrigation, and post-installation machinery.
We offer customized packaging, technical support, and international logistics solutions, ensuring smooth supply for long-term global partners.
“We have cooperated with GTM for over 8 years. Their post hole digger gearboxes are durable, easy to maintain, and perfectly fit our tractor auger systems. GTM also provides prompt technical support and spare parts.”
— OEM Partner, Australia
“GTM has been our trusted supplier for 5 years. Their gearboxes are shipped worldwide with stable quality, and their engineering team helps us customize gear ratios to match local soil conditions.”
— Distributor, North America
“Our fencing company in Germany relies on GTM post hole digger gearboxes for high-volume projects. Excellent performance and consistent delivery make them a preferred partner.”
— European Farm Equipment Company
“We installed GTM gearboxes on our tractor-mounted augers for irrigation installation in India. The units perform reliably in harsh conditions, and GTM’s after-sales service is very responsive.”
— Agricultural Machinery Operator, India
Over 25 years of manufacturing experience in transmission machinery.
Exported to 40+ countries, supporting top agricultural equipment brands globally.
OEM & Custom Solutions – Tailored gearbox design for augers, tractors, and earth-drilling equipment.
Certified Quality Assurance – ISO9001, IATF16949, environmental & occupational health certifications.
Strong R&D Capability – 6 invention patents and 50+ utility model patents, ensuring innovative and reliable products.
Visit our About GTM page to explore our production capabilities.
Choosing a reliable Post-hole Digger Gearbox is key to efficient and trouble-free operation. GTM supplies standardized and customizable gearboxes for auger applications globally.
Explore our full Rotary Tiller Gearbox range, Rotary Cutter Gearbox line, and Post-hole Digger Gearbox solutions today.
